HappyLoop Quick Start Guide

Login

Go to app.happyloop.com and log in with your business email. Your account has already been set up by our technical team.

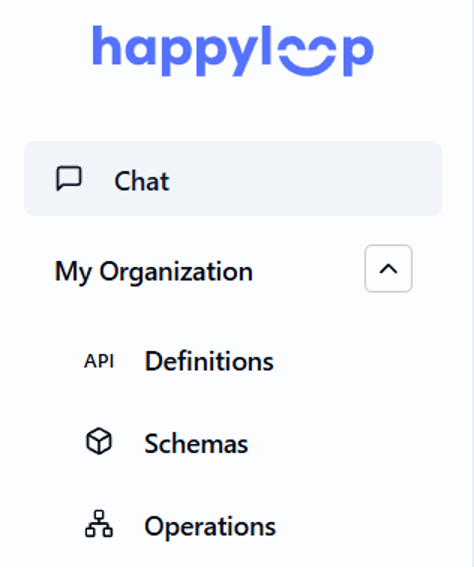

Navigation: Sidebar Overview

Use the left-hand sidebar in the HappyLoop interface to access the key setup areas:

• Organizations
• Definitions
• Schemas
• Operations
• Test Area

Each section below corresponds to one of these menus.

1. Organization

An Organization represents your company within HappyLoop. It acts as the top-level container for:

• API integrations
• Schema and operation definitions
• User access

Create or select your Organization to begin the setup process. Each Integration is linked to an Organization.

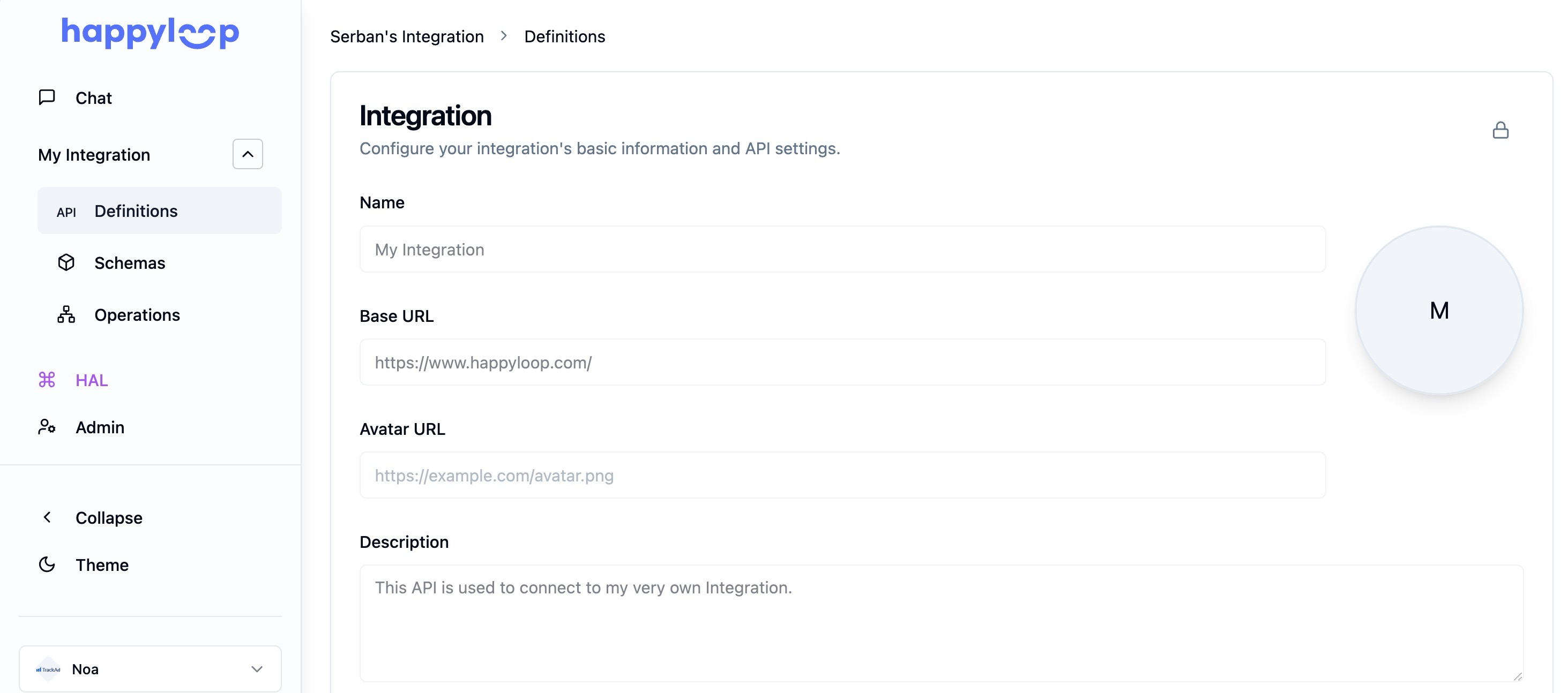

2. Definitions (API Setup)

In the Definitions section, configure the details of your external API:

• Base URL
• Authentication credentials (e.g., API keys, bearer tokens)
• Environment (e.g., production, staging)
• Metadata: API name, short description, logo

This step sets the foundation for all subsequent configurations. Unlock 🔓 the Integration to edit and save changes.

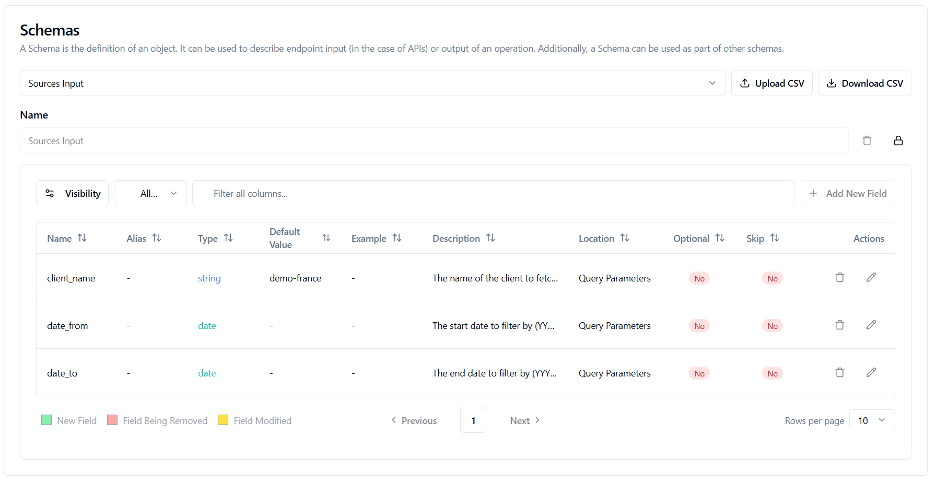

3. Schemas (Data Structures)

Schemas define the structure of your API’s inputs and outputs. They help HappyLoop understand and model the shape of your data so it can answer accurately.

Creating or Editing a Schema

• Use + Create New Schema to define a new structure
• Unlock 🔓 an existing schema to edit sand save

Schemas are made up of fields, each representing a specific data point.

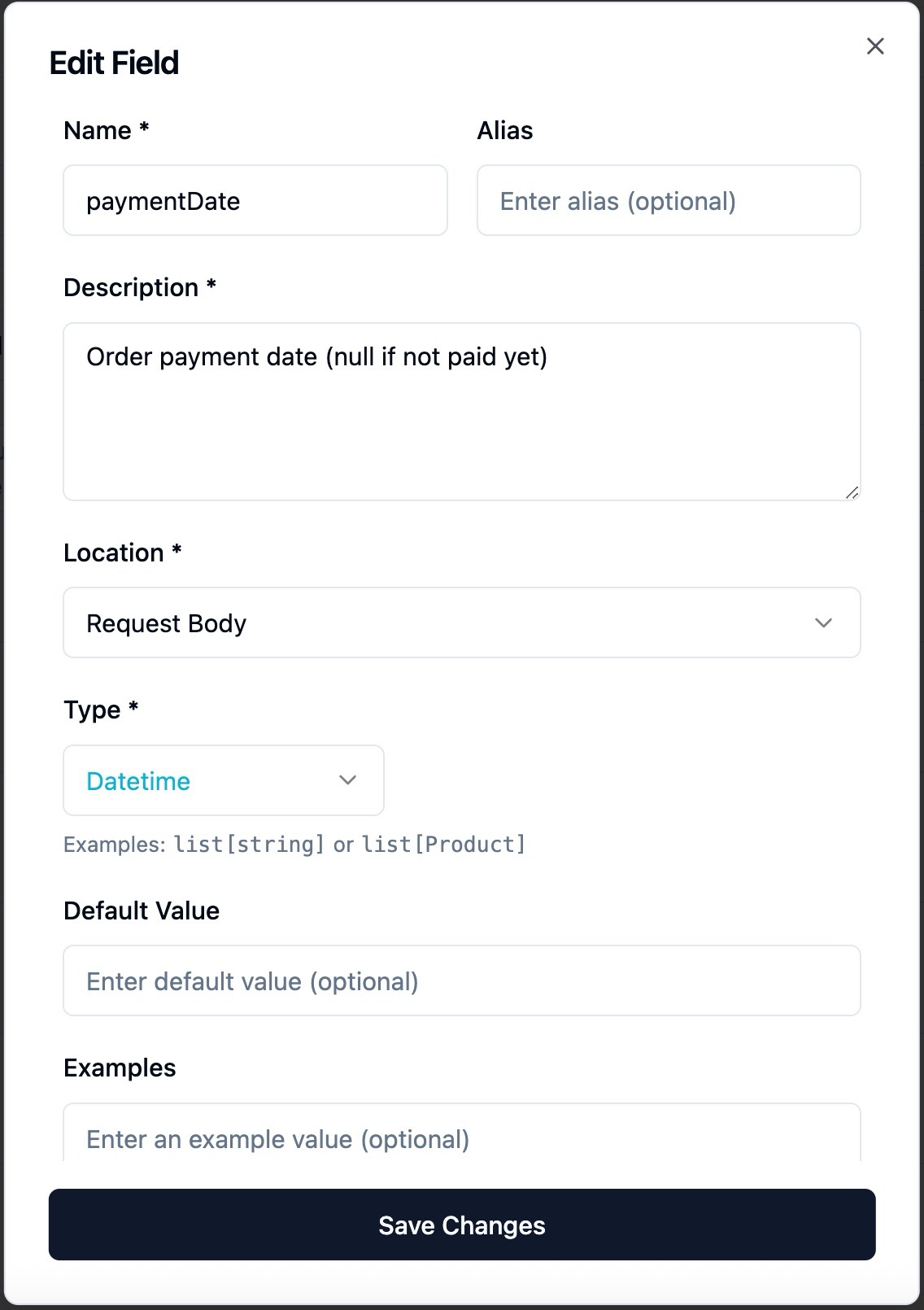

Edit Field Form (Field Properties)

Each field includes the following:

• Name – Required. Must match the API parameter (e.g. paymentDate)
• Description – Short explanation (e.g. “Order payment date”)
• Location – Where the field appears: Path, Query, Header, Body
• Type – Data type (e.g. Datetime, String, Integer, List)
• Default Value – Optional fallback value
• Examples (optional) – Illustrative sample values
• Optional – Allows null as a value
• Skip – Prevents AI from autofilling; uses default instead

Schemas can be reused and composed to reflect complex API structures.

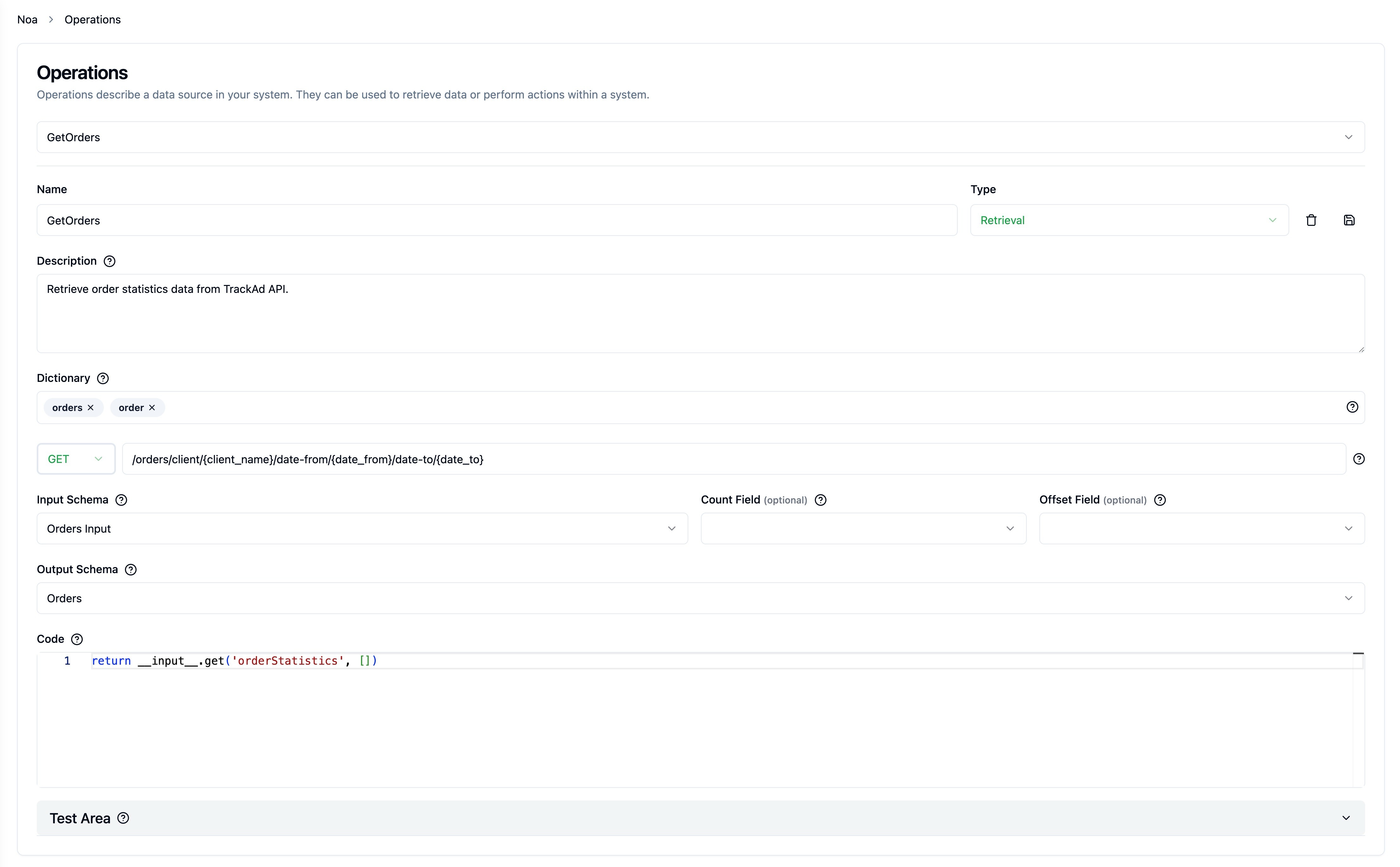

4. Operations (Endpoint Mapping)

Each Operation represents a single interaction with your API — usually a data fetch or update.

Define an Operation

• Name – Unique label (e.g. GetOrders)
• Type – e.g. GET, POST, PUT, DELETE
• Description – What the endpoint does
• Dictionary Tags – Keywords for triggering via chat
• Endpoint Configuration – HTTP method and path (e.g. /orders/client/{client_name})
• Input Schema – Data required for the request
• Output Schema – Expected structure of the response
• Count / Offset Fields (optional) – For paginated endpoints
• Code Section – Add lightweight transformation logic to extract relevant response data

Use operations to define how HappyLoop communicates with each endpoint in your API.

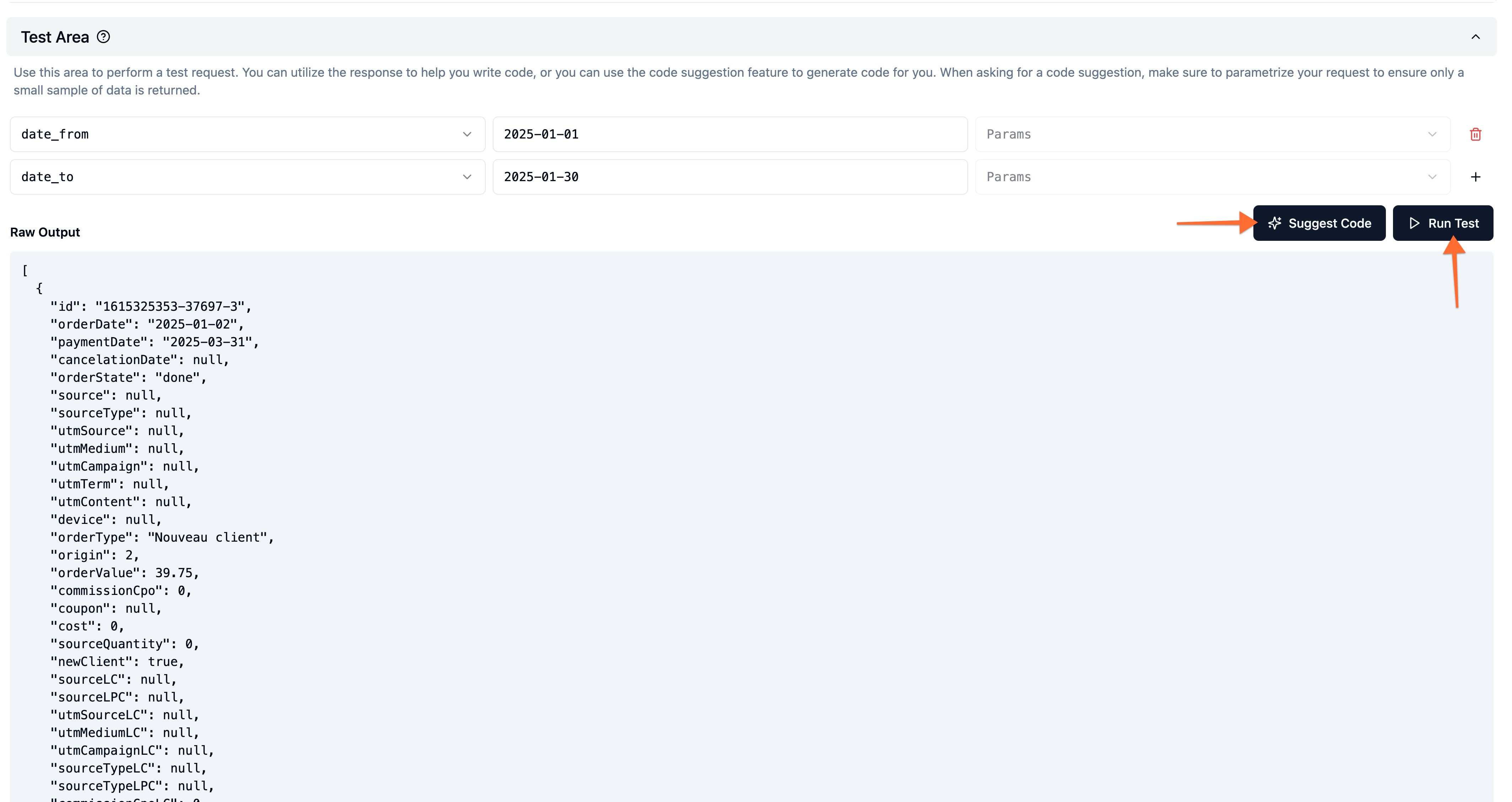

5. Test Area (Validation & Debugging)

Use the Test Area to validate your setup and preview API responses.

Key Functions

• Send sample requests
• View raw API responses
• Generate transformation logic via Suggest Code

⚠️ Use only sandbox or dummy data when using Suggest Code. Input in this section may be shared with AI models to assist code generation.

Note:

• Large responses may limit code suggestion capability
• Outside of this area, no data is shared with external models

The Test Area helps refine your logic and ensure everything is working correctly before use.

Use the Analyst

You’ve now:

• Set up your organization
• Connected your API
• Defined schemas and operations
• Validated everything via test calls

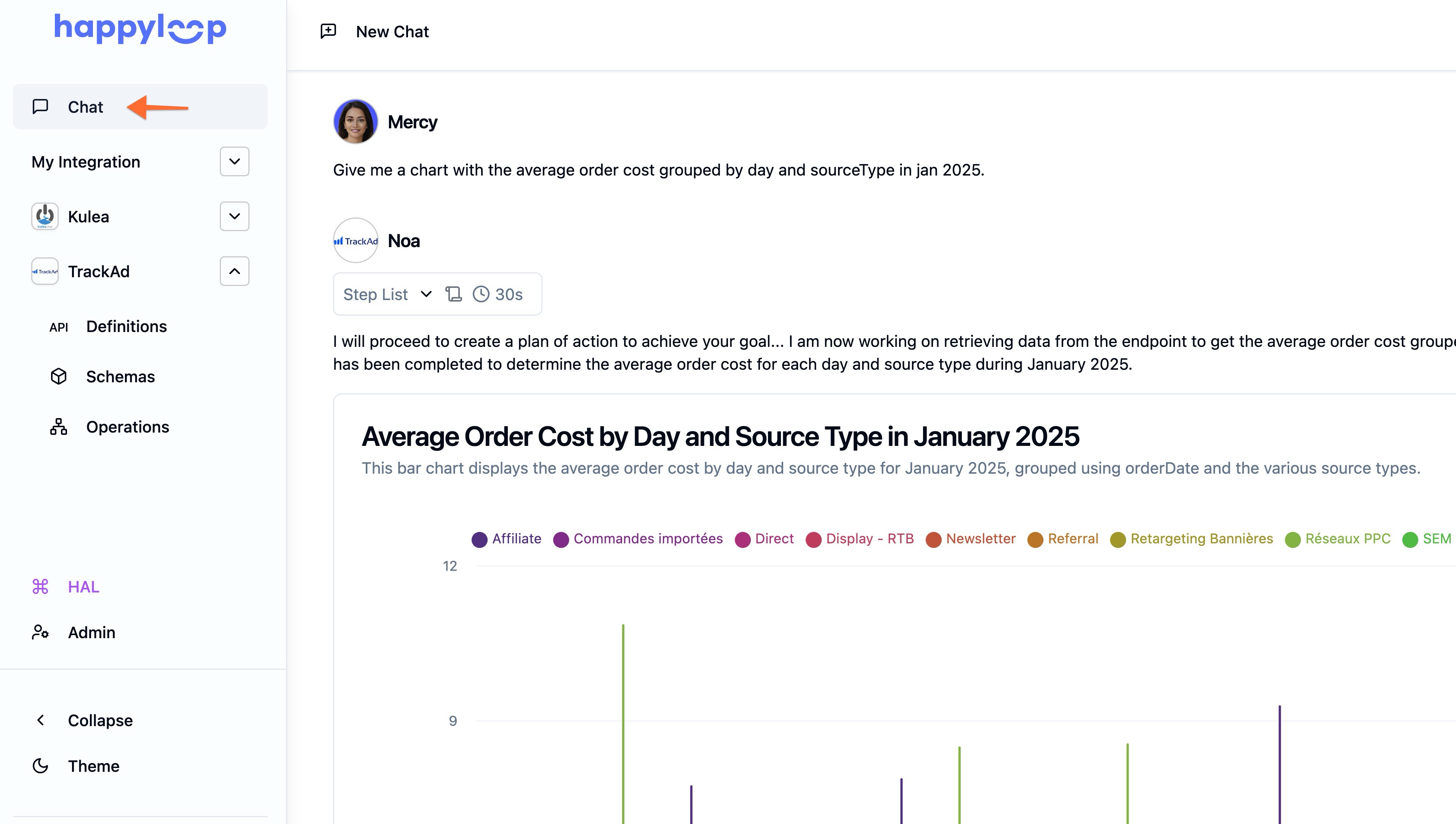

HappyLoop is now ready to analyze your data. Go to Chat and start asking questions.

Need help with the setup? Book a call with our technical team and we’ll get you sorted fast.
